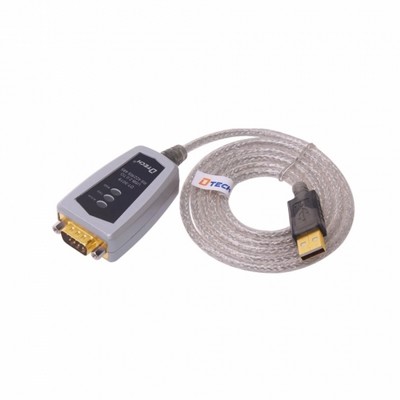

כבל מתאם USB ל RS485 / RS422 (כבל USB ל- COM) כולל תמיכה ב WINDOWS 10 של חברת DTECH

צ'יפ של FTDI - עם נורות חיווי

חבילה מומלצת

מחיר ₪ 159.00 ILS 8/7/2027 Out of stock DTECH-RS485 DTECH-RS485

כבל המאפשר יציאת (COM DB9 (D-SUB 9-PIN דרך יציאת ה USB של המחשב.

מאפשר יציאת RS485 / RS422 בתפקוד מלא לפי תקן TIA/EIA.

צ'יפ איכותי ואמין FTDI

קצב העברת נתונים מ 300 באוד ועד 921600 באוד

פועל המערכות ווינדוס, לינוקס, MAC

מפרט מלא:

Standards: conforming to USBV1.0, 1.1 and 2.0
RS-485,RS-422 TIA/EIA Standard
USB signals: VCC, DATA+, DATA-, GND and FG
RS-422 Signal: T/R+,T/R-,RXT+,RXD-,GND; RS-485 signals: T/R+,T/R-.GND
Working mode: asynchronous working,point-to-point or point-to-multipoint 2 wires (half duplex) 4 wires (full duplex)
Single chip USB to asynchronous serial data transfer interface
Direction control: Adopt the technology which automatically controls the data-flow direction,automatically distinguish and control the data-transmission direction;
Support Bits per second Data transfer rates from 300 baud to 921600baud;
UART interface support for 7 or 8 data bits,1 or 2 stop bits and even/odd/mark/space/none
Flow control none,hardware and xon/xoff
Synchronous and asynchronous bit bang interface options with RD# and WR# strobes
Transmission distance: RS-485/422 port:1.2km (300bps-921600bps).USB port : No more than 5 meters
Interface protection: surge protection and ±15KV ESD protection
Load capability; Support point-to-multipoint transmission. Each converter can connect 32 RS-422 or RS-485 interface equipment
Signal indication: indicator lights for Power (PWR), Send (TXD) and Receive (RXD)
Transmission media: twisted-pair cable or shielded cable;
Extended operating temperature range; -40 to 85 °C

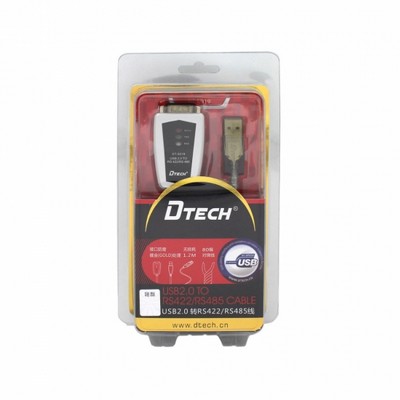

מה כלול בערכה?

כבל המאפשר יציאת (COM DB9 (D-SUB 9-PIN דרך יציאת ה USB של המחשב.

מאפשר יציאת RS485 / RS422 בתפקוד מלא לפי תקן TIA/EIA.

צ'יפ איכותי ואמין FTDI

קצב העברת נתונים מ 300 באוד ועד 921600 באוד

פועל המערכות ווינדוס, לינוקס, MAC

מפרט מלא:

Standards: conforming to USBV1.0, 1.1 and 2.0
RS-485,RS-422 TIA/EIA Standard
USB signals: VCC, DATA+, DATA-, GND and FG
RS-422 Signal: T/R+,T/R-,RXT+,RXD-,GND; RS-485 signals: T/R+,T/R-.GND
Working mode: asynchronous working,point-to-point or point-to-multipoint 2 wires (half duplex) 4 wires (full duplex)
Single chip USB to asynchronous serial data transfer interface
Direction control: Adopt the technology which automatically controls the data-flow direction,automatically distinguish and control the data-transmission direction;
Support Bits per second Data transfer rates from 300 baud to 921600baud;
UART interface support for 7 or 8 data bits,1 or 2 stop bits and even/odd/mark/space/none
Flow control none,hardware and xon/xoff
Synchronous and asynchronous bit bang interface options with RD# and WR# strobes
Transmission distance: RS-485/422 port:1.2km (300bps-921600bps).USB port : No more than 5 meters
Interface protection: surge protection and ±15KV ESD protection
Load capability; Support point-to-multipoint transmission. Each converter can connect 32 RS-422 or RS-485 interface equipment
Signal indication: indicator lights for Power (PWR), Send (TXD) and Receive (RXD)
Transmission media: twisted-pair cable or shielded cable;
Extended operating temperature range; -40 to 85 °C
